Exemplo - Attribuição

Codigo: example_case.tar.gz


Codigo em VHDL


--== Header =============================================================================

library IEEE;
use IEEE.std_logic_1164.all;

-----------------------------------------------------------------------------------------


--== Entidade ===========================================================================

ENTITY Case_tb IS
END Case_tb;

-----------------------------------------------------------------------------------------


--== Arquitetura ========================================================================

ARCHITECTURE behavior OF Case_tb IS
	-- Sinais Locais
	signal a  : std_logic_vector(1 downto 0);
	signal s1 : std_logic;


	signal clk   : std_logic;


-- Comportamento
BEGIN
	a <= "01";

	process(clk)
	begin
		if a = "00" then
			s1 <= '0';
		else
			if a = "01" then
				s1 <= '1';
			else
				s1 <= 'Z';
			end if;
		end if;

		case a is
			when "00" => s1 <= '0';
			when "01" => s1 <= '1';
			when "10" => s1 <= 'Z';
			when "11" => s1 <= 'Z';
			when others => s1 <= 'Z';
		end case;
	end process;


-- Nao considerar esta parte
	clk_process: process
	begin
		clk <= '0';
		wait for 1 ns;
		clk <= '1';
		wait for 1 ns;
	end process;

END;

-----------------------------------------------------------------------------------------

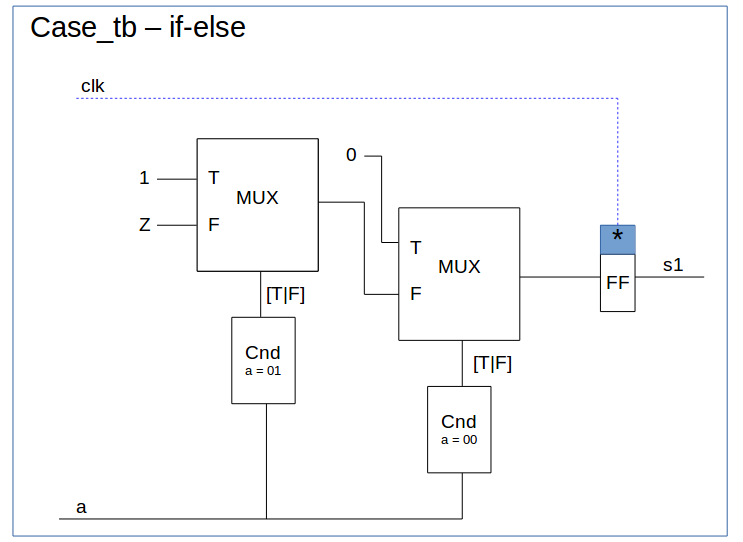

Circuito Compilado para o IF encadeado

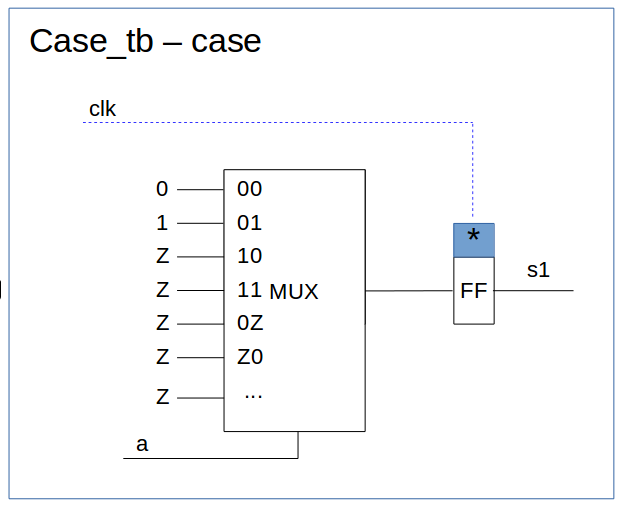

Circuito Compilado para o Case
